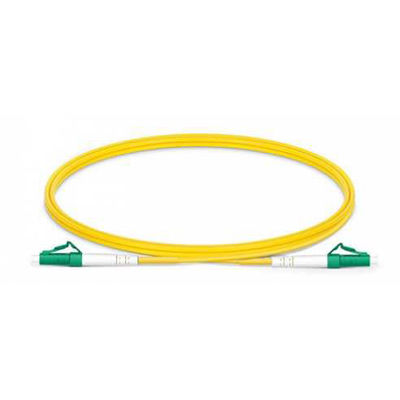

LC APC naar LC APC Simplex Glasvezel Patchkabel met G.652.D Single Mode en 2.0mm PVC Jas

Basisinformatie
Plaats van herkomst: CHINA
Merknaam: Zion communication
Modelnummer: LC APC aan LC-APC Simplex
Min. bestelaantal: 20pcs
Verpakking Details: 10 PC/Plastic Zak
Levertijd: Normaal 25 dagen na ontving de storting.
Betalingscondities: T/T
Levering vermogen: Geen grens
Gedetailleerde informatie
Vezelselling: Simplex / duplex Hoofdmateriaal: Pvc/LSZH/Voltallige vergadering (OFNP)
Kabel lengte: 1m, 2m, 3m. andere lengten op verzoek Vezelhoogte: ± 100nm
Markeren:

LC APC aan LC-APC G652D

,

De Vezel Optische Kabel van pvc OS2

,

Simplex Enige Wijze G652D


Productomschrijving

LC APC naar LC APC Simplex OS2 G652D Single Mode PVC 2.0mm - 2m Glasvezel Patch Cord
Overzicht Glasvezel Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Glasvezel patch cord/pigtails.

LC APC naar LC APC Simplex Glasvezel Patchkabel met G.652.D Single Mode en 2.0mm PVC Jas 0
Productspecificaties
Vezeltype Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50/125)
OM3, OM4 (50/125, Laser Optimalisatie)
Vezel Aantal Simplex / Duplex
Kabelmantel Hoofdmateriaal: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Mantel Kleur Geel: SM: OS2 (G.652.D / G.657.A1 / G.657.A2)
Oranje: OM1, OM2
Aqua: OM3, OM4
Kabellengte 1m, 2m, 3m. Andere lengtes op aanvraag
Mechanische Specificaties
  • Ferrule: Keramiek (MTRJ: PS-Polyfenyleensulfide)
  • Apex Offset: < 50um
  • Vezelhoogte: ± 100nm
  • Radius van Kromming: 7mm R < 25mm (Exclusief MTRJ)
  • Herhaalbaarheid: ≤ 0.2dB 1.000 keer koppelingscycli
Connector Details
LC APC naar LC APC Simplex Glasvezel Patchkabel met G.652.D Single Mode en 2.0mm PVC Jas 1
Prestatieparameters
Parameter LC APC LC APC
Werkende Golflengte (nm) 1310-1550 1310-1550
Invoegverlies (dB) ≤ 0.3 ≤ 0.3
Retourverlies (dB) ≥ 60 ≥ 60
Herhaalbaarheid (dB) ≤ 0.1 ≤ 0.1
Uitwisselbaarheid (dB) ≤ 0.2 ≤ 0.2
Treksterkte (N) ≥ 1000 ≥ 1000
Bedrijfstemperatuur (°C) -20 tot +85 -20 tot +85
Opslagtemperatuur (°C) -40 tot +85 -40 tot +85
Productidentificatie
Zion Code Beschrijving
1212S112-2 LC APC naar LC APC Simplex G.652.D Single Mode PVC 2.0mm - 2m(6ft) FOPC
LC APC naar LC APC Simplex Glasvezel Patchkabel met G.652.D Single Mode en 2.0mm PVC Jas 2
OEM/ODM Diensten

ZION Communication heeft ruime ervaring in het produceren van OEM/ODM cases dankzij ons professionele R&D team.

  • Aangepast Logo
  • Afdrukken op Kabel
  • Label/PE zak/Karton ontwerp
  • Verschillende Kleuren & Verschillende Lengtes Beschikbaar
LC APC naar LC APC Simplex Glasvezel Patchkabel met G.652.D Single Mode en 2.0mm PVC Jas 3
